Product Name:

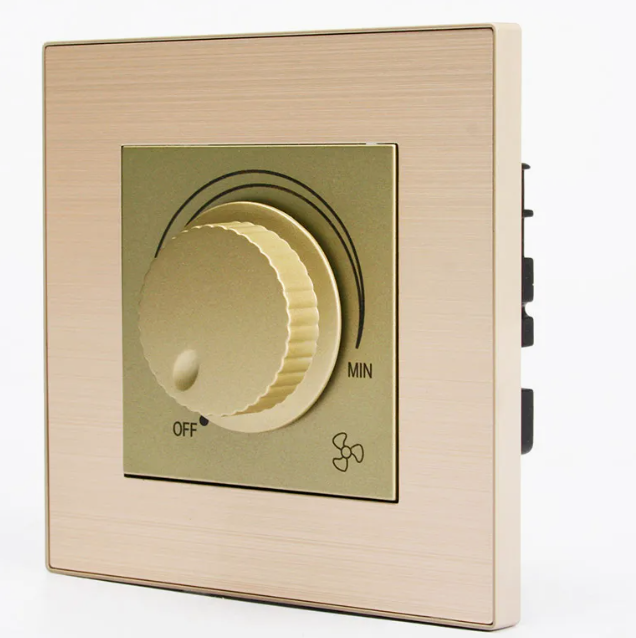

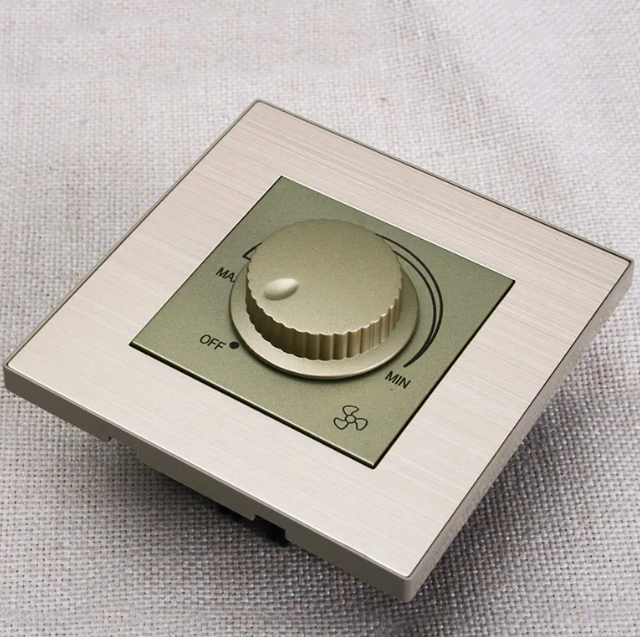

Fan Speed Control Switch

Model Type: 240V AC | Max 300W

Key Features:

1. Voltage & Load Capacity: 240V AC, Max 300W – suitable for a wide range of fans.
2. Control Type: Rotary knob with OFF position and arrow indication; anti-slip thread for grip and ease of use.
3. Color & Finish: Full-body Champagne Gold (aluminum panel + plastic components) – elegant and cohesive appearance.
4. Design Aesthetics: Modern minimalist design, suitable for luxury interiors such as hotels, resorts, and clubs.
5. Customizability:
6. Modular panel system (1-5 gang)
7. Custom text and colors available upon request
8. Compatible with sockets and switches: telephone, TV, computer, 5/7-pin, dimmer, and more
9. Frame Structure: Narrow-frame outer design with high-durability aluminum alloy

Material & Safety:

1. Material:
2. Front Panel: Champagne Gold Aluminum Alloy
3. Functional Core: Painted plastic (champagne gold finish)
4. Frame and Back Box: V0 grade flame-retardant ABS
5. Safety Standard:
6. Compliant with international fire safety standards
7. Moisture-resistant design

Installation & Dimensions:

1. Mounting Box Sizes (Optional):
2. 77×77×38mm
3. 77×77×45mm
4. 86×86×45mm
5. Front Panel Size: 86×86mm
6. Screw Distance (center to center): 60mm (standard for 86mm back boxes)
7. Installation Type: Flush-mounted with screw fixation
8. Wiring Guide: Clearly marked on the product rear for ease of installation

Operating Conditions:

1. Temperature Range: -10ºC to +60ºC
2. Humidity Range: 0% to 95% RH (non-condensing)

Applications:

Ideal for modern:

1. Hotels & Resorts
2. Premium Apartments
3. Lounges & Clubs
4. Villas & Commercial Complexes
